Designed for pre-wall installation, this toilet cistern with frame and dual flush plate creates a tidy wall-hung WC setup by keeping the cistern and pipework hidden behind the wall. Once fitted, only your chosen toilet pan and the included brushed brass toilet flush plate remain visible for a clean look..

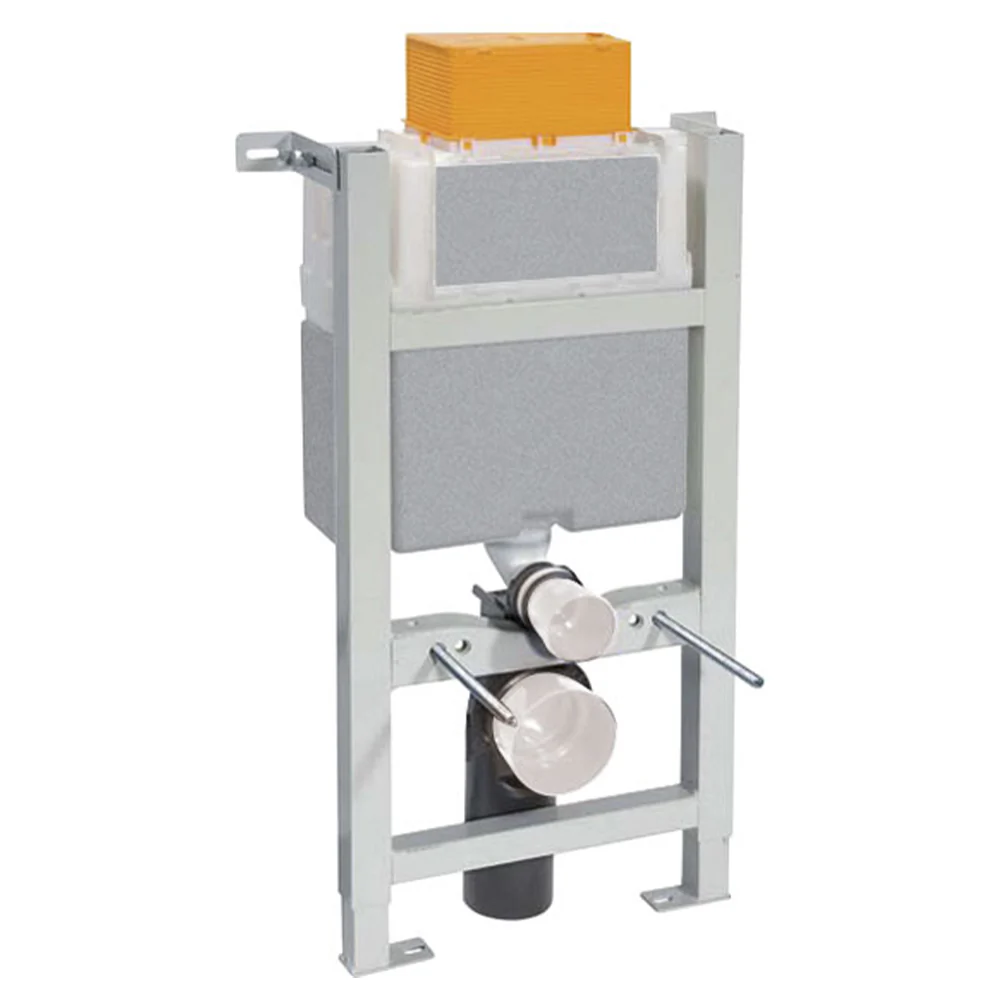

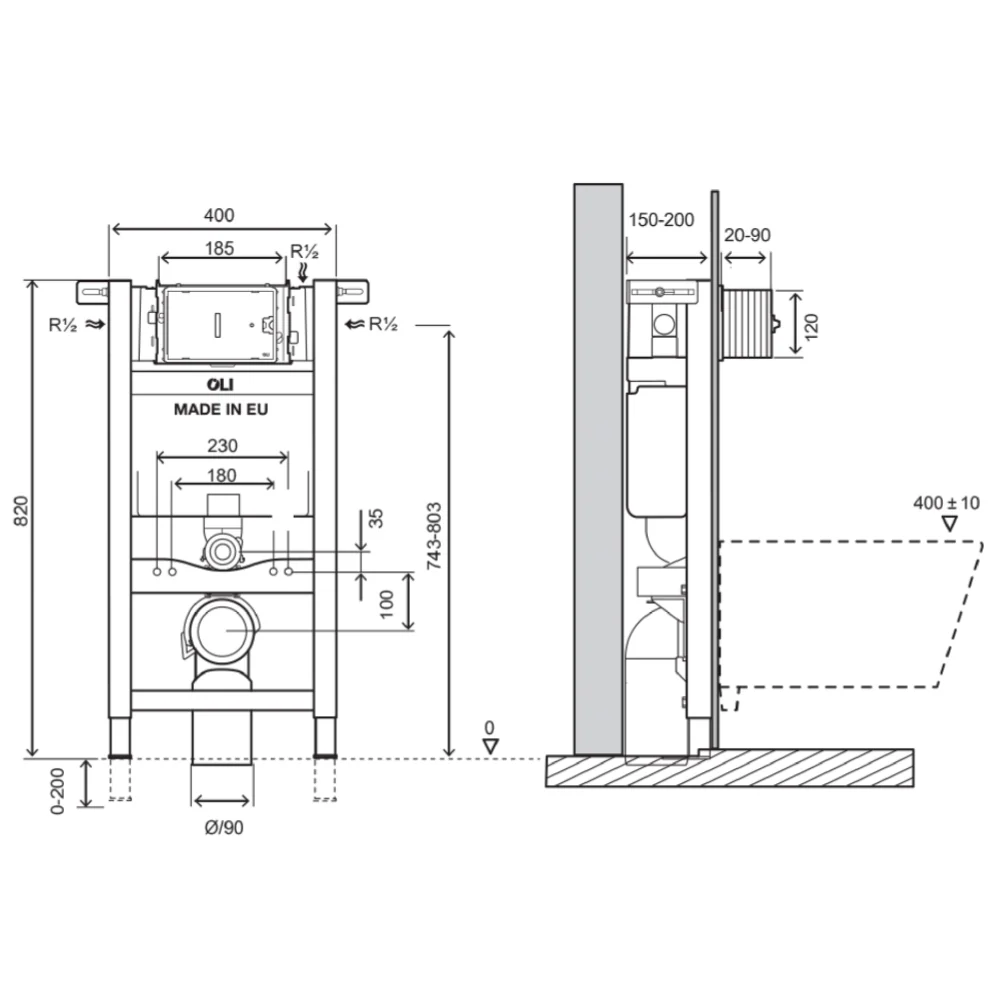

The metal WC frame with concealed cistern measures 820mm in height and 400mm in width, its floor-mounted structure provides secure support for a wall-hung toilet, while the included fixing brackets help ensure a stable installation.

Supplied with a WC bend, it allows neat rear connection to the toilet pan. The integrated dual flush cistern features a 3/6 litre dual flush, giving users the choice between a smaller water-saving flush and a fuller flush when required. The top actuation part for the flush plate can be adjusted to the front if required.

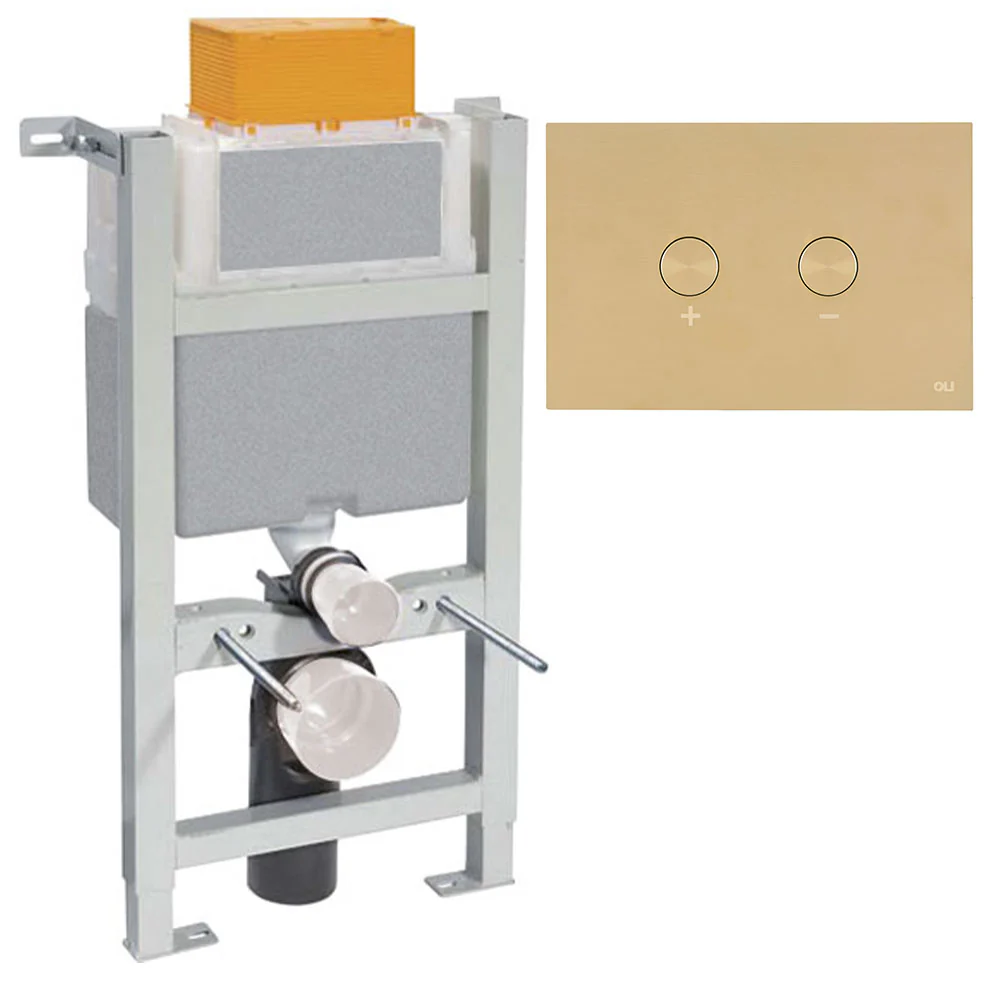

The brushed brass flush plate can be fitted for either top or front operation. Measuring 215mm width and 145mm height, it features a rectangular design with two round buttons that operate the dual-flush cistern, allowing users to choose between the smaller or fuller flush.

Features & Benefits:

Concealed Cistern:

• High-quality ABS plastic, metal body

• Concealed kit includes brackets and WC bend pipe

• 3L/6L flush choice helps reduce water use

• Top or front flush installation

• Height: 820mm

• Width: 400mm

• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Brushed brass finish

• Durable metal material

• Pneumatic flush action provides smooth operation

• Dual button design supports half or full flush

• Height: 145mm

• Width: 215mm

• 2-year manufacturing guarantee
